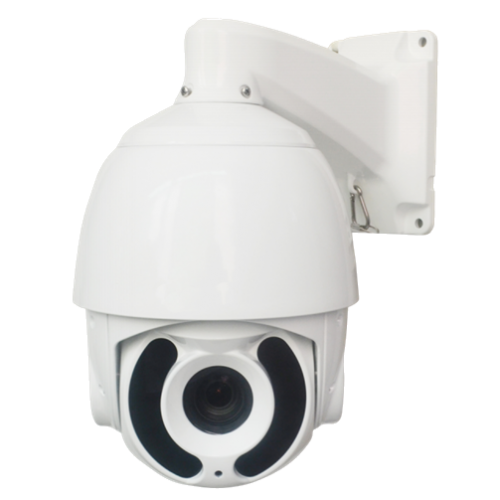

ASD320IR-20X 2MP Sony Sensor 20X IR Speed Dome

2MP Sony Sensor 20X IR Speed Dome

 Key Features

•  1/2.9” 2.0 Sony Exmor Megapixles CMOS Sensor
•  1080p, 2.0 Megapixles
•  20X Optical Zoom, High Speed
•  4in1 Signal Switchable : AHD/TVI/CVI/CVBS
•  Outdoor Application
•  8pcs Array 42Mil IR LEDs








Video & Operation
Image Sensor 1/2.9” Sony Exmor CMOS Sensor

Effective Pixel 1920(H)*1080(V)
Resolution 1080p, 2.0 Megapixels
S/N Ratio ≥50dB
Video Output Comply with AHD/TVI/CVI/CVBS
WB Indoor/Outdoor/Auto/Manual
AGC Auto/Manual
DWDR (ATR) Support
BLC Support
Operation Menu Multiple languages for OSD menu,
English, Italian Spanish, etc
Lightning Protection Transient voltage 6000V
Lens
Lens Type 20X Optical Zoom
4.7mm ~ 94mm
IR LED 8pcs Array 42Mil IR LEDs
Mechanism
Rotation Range Pan: 0°~360°, Tilt: 0°~93°
Rotation Speed Pan: 0°~400°/s, Tilt: 0°~200°/s
Auto Flip Horizontal 180°
Vertical 93°
Preset Points 220pcs preset (Preset Dwell time 01~60s interval available
A-B Scan User programmable (Scan speed 1~64 levels setting available)
Guard Tour 8 Groups (Max. 16points, dwell time user selectable)
PWR on Action Memory/Pattern 1/Tour 1/
360° scan/A-B scan/Park 1/None
Park Mode Pattern 1/Tour 1/360° scan/
A-B scan/Park 1/None
Park Time 1~60mins available
Pattern Scan 4pcs (Max. 15min, max. 512 commands)
Time Scheduling Function 6 Tasks
Communication RS485 (+/-) / Coaxial cable
Electrical
Power Voltage DC12V 4A
Power Consumption ≤25W
Environmental
Working Temperature -40°C ~+60°C
Physical
Case Material Metal, IP66 rate protection
